What is the difference between 201 J1, 201 J2, 201 J3, 201 J4, 201 J5?

Although 201 stainless steel may look similar to the 304 grade on the surface, the chemical elements they contain are vastly different. Before it becomes stainless, the 201 material is even darker than iron. It transforms into the “white steel” commonly seen only after undergoing multiple pickling and annealing processes. Its surface is coated with a layer that isolates it from air. If it ever rusts, it’s likely because this protective layer has been compromised, allowing for oxidation. It’s essential to note that 201 stainless steel can indeed rust, particularly in poor environments, though many instances of rust-free usage indoors for 4-5 years also exist. Understanding the differences between J1, J2, J3, and J5 is crucial as each variant has its unique properties, influencing your selection based on specific requirements.

Elemental Composition and Properties of 201 Stainless Steel Variants

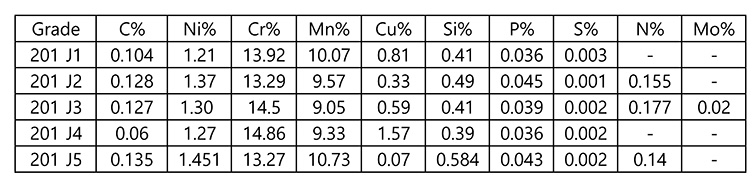

From available datasheet, we can see that while the nickel and chromium content doesn’t vary significantly among these variants, there’s a noticeable difference in their carbon and copper content. Here’s how they rank in terms of element composition:

Copper content: 201 J4 > 201 J1 > 201 J3 > 201 J2 > 201 J5.
Carbon content: 201 J5 > 201 J2 > 201 J3 > 201 J1 > 201 J4.
Hardness: 201 J5, 201 J2 > 201 J3 > 201 J1 > 201 J4.

Elemental Differences Explained:
Materials with higher copper content exhibit the best ductility, which is particularly advantageous for high-end products requiring precise stamping.

A higher carbon content indicates greater hardness, making such materials more challenging to work with, including potential issues with bending due to the increased likelihood of cracking. However, these materials are suitable for flat panels and other applications where high strength is not critical, offering a cost advantage.

Market Applications and Differences Among 201 Stainless Steel Variants

201 J1: The J1 variant is the most widely used material in the market, often selected for stainless steel door panels, welding products, and shallow drawing. Not all steel plants categorize their products into J series, but essentially, the common stainless steel 201 (denoted as 201#LH) is similar to J1. L1 signifies higher nickel content, offering better rust resistance and ductility, but at a significantly higher cost.

201 J2 and 201 J5: 201 J2 and 201 J5 materials are priced similarly, but there are differences. 201 J2 is suitable for simple bending operations under 1.2mm thickness. However, J2 material shows more pitting during 8K mirror finishing compared to 201 J1, making it less ideal for high-quality finishes.

201 J3: Positioned between J1 and J2 in terms of price, 201 J3 finds itself in a niche market, often overshadowed by J1 due to their price similarity, leading to limited market presence.

201 J4: Known for its higher copper content, 201 J4 material offers excellent ductility, making it ideal for deep-drawn stainless steel products. Despite its slightly higher price than 201 J1, 201 J4 provides a balanced option for cost-effective, high-performance requirements.

Conclusion

In conclusion, the 201 stainless steel grade encompasses various types, each with its specific properties and applications. By understanding these differences, businesses can make informed decisions tailored to their product requirements and market demands.
